UV MIRRORS AND REFLECTORS

BACHUR & ASSOCIATES offers a full range of high performance, cost-effective UV Mirrors for UV Exposure Systems, UV Lightsources and Mask Alignment Systems manufactured by Oriel, Quintel, Karl Suss, Optical Associates, HTG, ABM, and JBA. B&A's mirrors offer performance equal to, or better than, the original equipment at a significantly lower cost. Many replacement mirrors are available from stock.

Mirrors in the Near, Mid and Deep UV spectrums are available in sizes up to 8" x 11" on "Pyrex" substrate materials as well as on high temperature substrates.

  • Near UV Spectrums: 340nm - 450nm (includes UV365, UV400 and the UV436 Spectrums)
  • Mid UV Spectrums: 275nm - 325nm (includes UV300 and UV310 Spectrums)
  • Deep UV Spectrums: DUV220, DUV254 and DUV260
  •
    Near UV Mirrors
    Deep UV Mirrors Photo
    Mid, Deep UV Mirrors

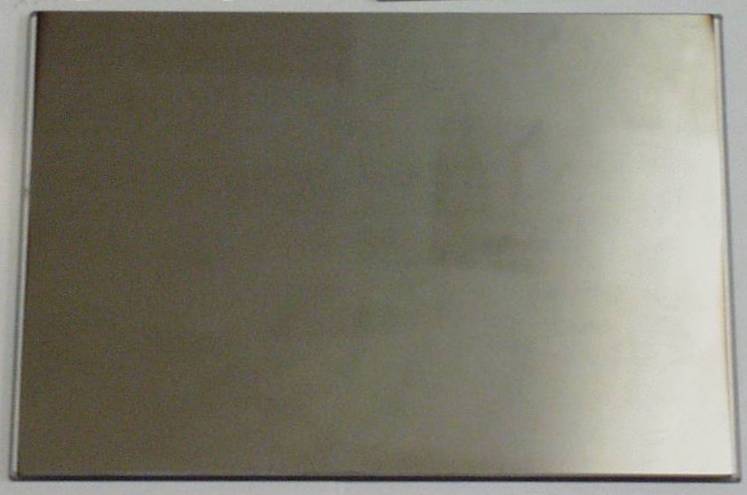

    Wideband UV Mirror Photo
    Wideband UV Mirrors


    METAL REFLECTORS

    Bachur & Associates offers high performance, cost-effective elliptical reflectors for UV Exposure Systems manufactured by Oriel, Karl Suss, OAI, HTG, ABM, and JBA. B&A's elliptical reflectors offer performance equal to, or better than, the original equipment at a significantly lower cost. Many replacement elliptical reflectors are available from stock.

    Elliptical Reflectors are available in diameters up to 12". The larger elliptical reflectors are manufactured by electro-deposited nickel on very highly polished glass mandrels. Small reflectors are usually made of glass materials overcoated with metalized or dielectric reflective coatings.  A variety of reflective coatings are available to enhance reflector performance.

    Elliptical Reflectors

    Elliptical Reflectors
